A safer alternative to a traditional boiler filling loop

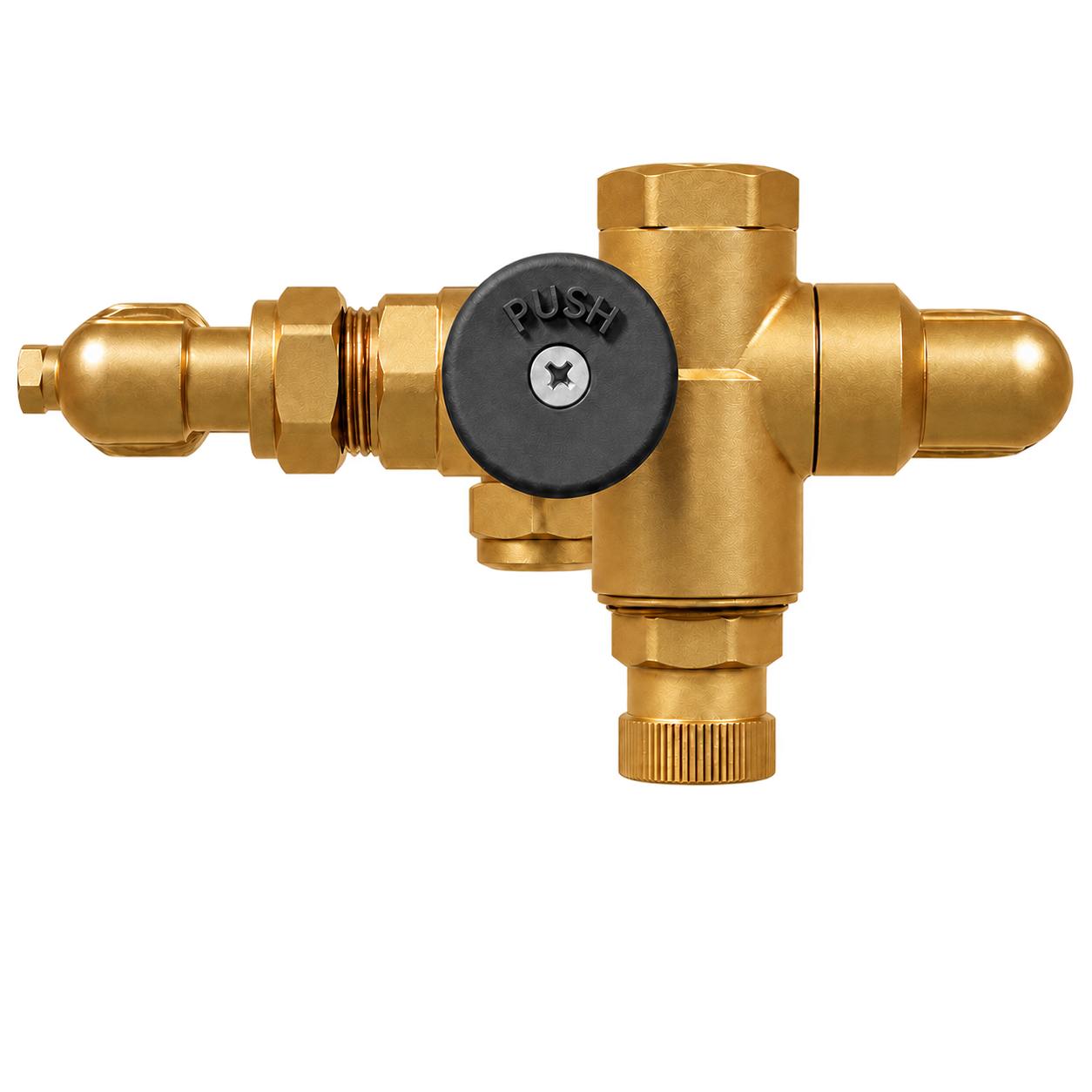

Unlike a removable flexible filling loop, the JEPP VALVE provides a permanent, simple way to refill and pressurise a combi boiler or sealed heating system. Its push-button control and preset maximum pressure help homeowners, landlords and heating engineers top up a system without accidental over-pressurisation.

Why

The JEPP VALVE was invented because the standard filling loop is prone to letting water past in both the single valve and the double valve versions.

Problems that result from existing filling loops include:

• connecting the loop
• failed/seized isolation valves
• over-pressurising the system, causing long term damage
• leaving a permanently open connection causing short term damage to the boiler
• leaving running water on the outside of buildings

The list is endless and extensive.

Features

Features of the JEPP VALVE include:

• designed to be installed in a convenient position for the end user e.g. in cupboards
• ideal for loft installations
• an ideal/easy retro fit, replacing existing filling loops
• package includes an installer/bypass clip for commissioning systems
• WRAS approved for safe permanent connection to the incoming cold water mains supply
• Braille embossed push button to help the visually impaired

Benefits

Designed with the installer and the end user in mind:

• permanently installed sealed system filling valve
• easy to use – just press the button
• no need for the use of a flexible hose and fear of non-disconnection
• no isolation valves to leak or seize up
• provides water saving benefits over the lifetime of the system

The JEPP VALVE is also available for commercial installations. These valves have a preset maximum pressure of 2.5 bar.

* please note that should the end user have to refill more than once over a short period of time e.g. monthly, then we would advise calling an engineer to resolve a potential leak issue on the system.

Secure drain pipe & connector.

A permanently installed optional extra to ensure any minimal water discharge from the valve can be directed into a standpipe without the need for hard piping in copper tube.

The pipe is easily attached and provides the flexibility of plastic tube.

Supplied with one 1/2-inch BSP connector and 1.5 m of flexible tube.

Product carries a standard 1-year guarantee.

Easy and secure connection

Just screw directly to the valve.

No need to hard pipe in copper tube

Complete flexibility from plastic tube.

The JEPP CONE is a leak free toilet pan connector.

This will prevent the age old problem of the pan cone/flush cone working its way out the pan and causing a major leak.

The JEPP CONE fits all** Horizontal Outlet (HO) pans and most back to the wall pans.

When installed correctly, it will not work loose.  Once fitted, it’s in for good, unless removed.

**Hub Distribution also make a special JEPP CONE for a range of pans made by Roca.

(Roca pans are currently used by some large housing associations where the fitting is smaller than the standard toilet pan)

Product carries a standard 1 year guarantee.

• Leak Free
  No more damage to surrounding flooring & expensive repairs
• Fits all HO pans
  Universal fitting that fits all HO Pans and most back to wall pans

Download PDF Leaflet

The JEPP FLEX is a quick & easy fit for back to wall toilet pans / concealed cisterns.

It comes with an 8″ inch extended spigot which can be cut to suit application with a choice of two extended telescopic flexes.

Also has a 1-1 1/2″ and a 2″ syphon adaptor.

Product carries a standard 1 year guarantee.

For Merchant Sales contact our sole distributor:

Mark Vitow Ltd

Search product code JKF1 for the Jepp Flex Kits which includes the Jepp Cone

• Easy fit
  Any qualified plumber can install
• Cut to fit
  Simply cut to your required size

Product Specification

• Pan Spigot: 38mm diameter x 200mm long
• Flex Pipe: 260mm inc. fittings
• Overall length compressed: 500mm
• Overall length extended with fittings: 700mm
• This quality product is manufactured for Hub Distribution by McAlpine Ltd

The JEPP STOP is a device to simply connect your washing machine or dishwasher to a spigot on a sink waste and which will stop your machine back filling with waste water from your sink.

It comes with 1 x  stainless steel cable tie and 1 x  plastic cable tie.

With the JEPP STOP installed:

• the stainless steel cable tie is fitted to the spigot
• the plastic tie is fitted to the appliance outlet hose

When the tenant moves out the JEPP STOP stays on.  It’s not easy to cut off the stainless steel tie.  The occupants appliance is held on by the plastic cable tie which they just cut away and remove their appliance leaving the kitchen safe from flooding.

It is ideal for housing associations, letting agents, local authorities and private landlords etc. as, when tenants move out, they tend to just pull off the appliance hose leaving the sink waste open. This can easily lead to flooding when the new occupant moves in but hasn’t yet connected an appliance, runs the kitchen tap, fills the sink and then pulls the plug out.

Product carries a standard 1 year guarantee.

• No back filling
  Sink waste cannot backfill to your appliance
• Ideal for landlords & housing associations
  Avoids call outs when appliances removed & prevents damages from small floods
• Eliminates odour
  Design prevents odours from sink waste

Download PDF Leaflet
